LJ-700AL-700W

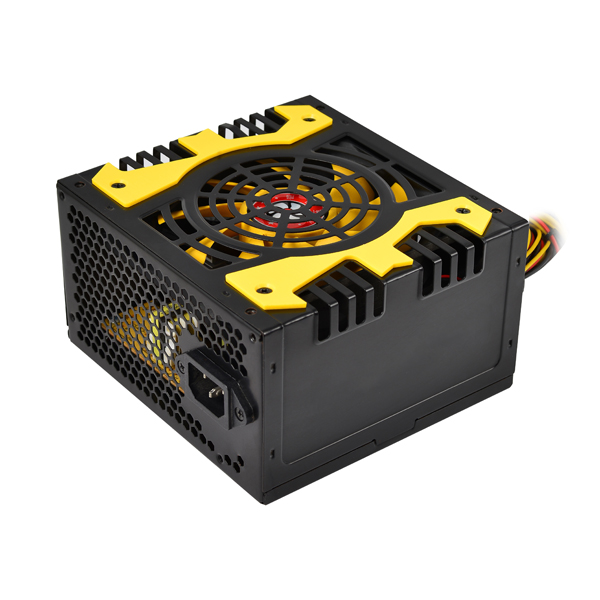

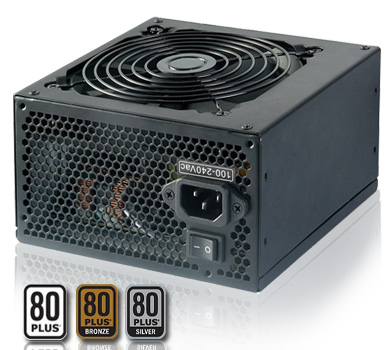

Introduction Photos

LJ-700AL-700W

● Confirm EPS12V 2.92 Version

● Output Capacity: 700 Watts Continuous

● Low Ripple & Noise & High efficiency, 80% 82% 85%

● Operation Temperature:0~50℃

● Dimension: 162.5* 150 *86mm

● Single 14cm Low-Noise Fan

● Life expectancy: MTBF :≥100kh hours

● Multiple Protections Function：(OCP、OVP、UVP、OPP)

● Safety Approvals：CE,FCC,CCC,80PLUS,82PLUS,85PLUS

Output Connectors:

Specification：

Model No	LJ-700AL-700W
Output Wattage	700W
PFC	Active PFC
Efficiency	> 80 % Full load
P. G	100-500 ms
Hold-up Time	16ms Min
Weight	1.2KG
Color	Black
Fan	Single 14cm*1
Dimension	162.5mm (L) x 150mm(W) x 86mm(H)
Protection	OCP、OVP、UVP、OPP、Short Circuit Protection

INPUT

Input Voltage

90-264Vac

Input Frequency

47 ~ 63 Hz

MTBF

100,000 hrs minimum (at 25 ℃)

Input Current 10A at 115V, 5A at 230V

Output
Voltage	+5V	+12V1	+12V2	+12V3	+12V4	-12V	+3.3V	+5Vsb
MIN	1.5	0.5	0.5	0.5	0.5	0.0	0.5	0.0
NOM	15	8	8	9	9	0.4	14	1.5
MAX	30	16	16	18	18	0.8	28	3
Units	AMPS	AMPS	AMPS	AMPS	AMPS	AMPS	AMPS	AMPS
1) Total wattage not exceed 700W 2) +5V and +3.3V total output wattage not exceed 170W 3) +12V output max current 56A
